RF Probe
Feature
- Low insertion loss and return loss
- Air coplanar design
- Small Probe Mark
- Wide range of pitch selection
- Probe Tip Replacement service available (Limited times)
- Connection Type : Angle or Vertical
- RF port : Single or Dual (Differential)
For more information :
https://tplus-co.com/products01.html
https://www.technoprobe.co.jp/rf-probe-head-kosekiban.html (Manufacturer Website)

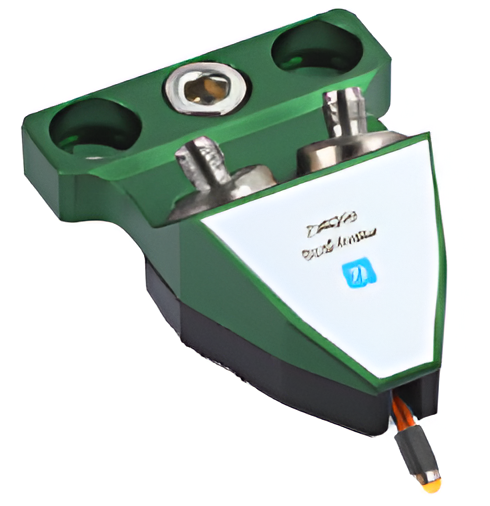

Single RF Probe
- GSG: 26GHz, 40GHz, 50GHz, 67GHz, 110GHz
- GS/SG: 26GHz, 40GHz, 50GHz, 67GHz, 110GHz

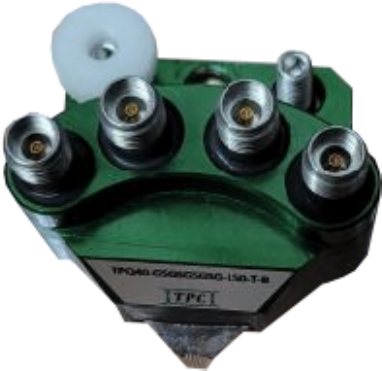

Dual/Differential Probe
- GSSG: 26GHz, 40GHz, 50GHz ,67GHz
- GSGSG: 26GHz, 40GHz, 50GHz, 67GHz
Waveguide Probe
- WR15 - 50 to 75 GHz
- WR12 - 60 to 90 GHz
- WR10 - 75 to 110 GHz
- WR8 - 110 to 140 GHz
- WR6 - 110 to 170 GHz
- WR5 - 140 to 220 GHz
- WR3 - 220 to 325 GHz
Adjustable Dual RF Probe
- Adjust between GS/SG, GSG/GSG, or S/S up to 4,000um (4mm / X axis only)
- Easy handling, micrometer structure (Patented)
- Low Insertion Loss and Return Loss up to 67GHz
- RF Air Coplanar probe (require uniformed pitch and configuration), OR Custom Fabrication RF Cantilever probe available (cannot be mixed air coplanar probe)
Custom Design RF Probe (RF Cantilever Probe)
- Low Insertion Loss and Return Loss up to 67GHz.
- RF Cantilever probe technology. Custom Fabrication.
- Unique configuration, un-uniformed pitch, different tip planarity alignment available.
- Max 10 RF ports available.
- High Power probe available.
- Non Initial Cost requirement, Short lead time.
- Custom design Calibration kit available.

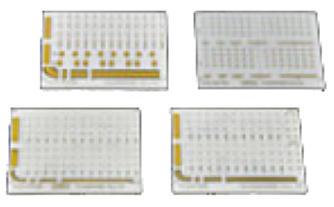

Calibration substrate (Cal kit)
- Accurate Resistance Value Control (+/- 0.003%)
- SOLT / TRL calibration available
- Custom design available
Diff. cal pad designed for easier probing
Loop back, Cross Thru1, Cross Thru2 on one substrate
- Cal Sub. Size: 22.0 X 25.0mm
