PR100E
Eco version, TDR
Item
Specification
Item
Specification
- Microscope
• Zoom scope
• Zoom : 0.75x ~ 5x
(Option: 2.5X)
• Illuminator : Ring type
• CCD : HDMI(1024x768)
• F.O.V. : approx. 1.3mm ~ 8.5mm
- Chuck
• Size: 100 mm x 100 mm
- package chuck (Square)
Clamp: vacuum (option)
Material: Polyacetal
Option: Wafer chuck, Al(NI)
- Scope Stage & Arm
• Scope Stage
- X,Y,Z axis travel range:
±15 mm
• Scope Arm
- Rotate & up/down
- Chuck Stage
• X, Y axis travel range : 10mm (fine)
• Magnet base on/off (For regular movements)
• Option :
- Z axis travel range
(Option : 6 mm(fine)
- Dimension
• Weight: Approx. 28 kg
• Size(mm):
480(w) x 490(d) x 500(h)
- Vacuum Switch
• For holding the sample in place (option)
- Chuck vacuum on/off- Option
• Microscope Type

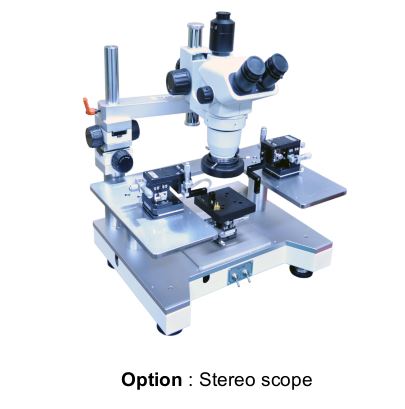

- Stereo scope or Zoom Scope
- Scope stage:
-Fixed type
-Flexible type

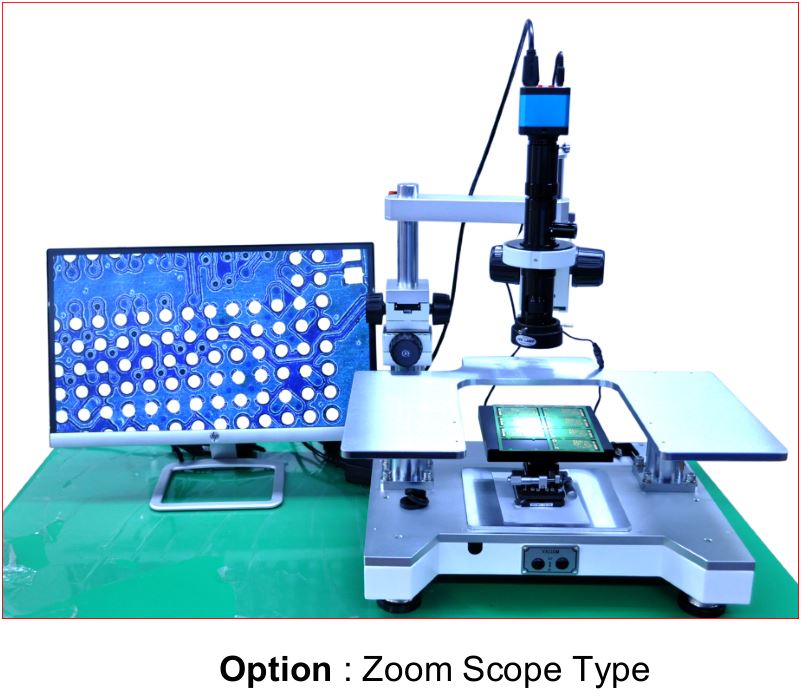

※ Zoom Scope Type: Observable through monitor
• Basic Model, Modifications may be made
